Регулятор Mancraft HHR fi 6mm

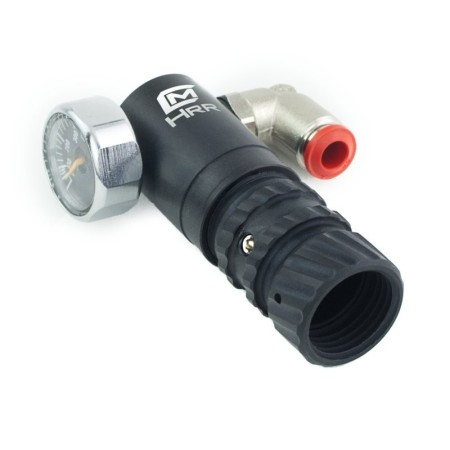

The High Refresh Rate Regulator

is a device to decrease and regulate the output pressure of HPA tank. It is designed to work with SLP, LP, HPA tanks and Mancraft Co2 adaptors. The output pressure of HRR can be set between 60psi to 250psi. Pressure is in range of Airsoft applications.

HRR is a high flow, high refresh rate regulator suited to use with HPA lines, QD fittings pistol lanyards, PDIK gen1, PDIK gen2 and SDIK Mancraft products. It also can be used with other manufacturer's products.

Unboxing

The Box contains:

HRR Regulator

Regulating screw for lower pressures (M5x10)

Soft spring for lower pressure

Packing foam

Installation

To install HRR onto a tank you need to align thread on regulator with thread on tank and turn it clockwise until it's set. To prevent the thread from wearout use grease.

If you need to remove the regulator unscrew turning it counter-clockwise while holding by gripped Lower Casing. To prevent from damage or unintentional dissasemble of HRR don't hold it by Output Fitting or Upper Casing. Built-up pressure between regulator and HP tank can be released after half a turn by detach of an HP line (or releasing QD fitting). If you have trouble to turn and detach the regulator put an Allen key into a Pressure Screw and use it as a lever.
