Earmor M32X MOD4 tactical headset

Package Contents

• Electronic headset M32X MOD4
• Headband Mount
• M16C ARC rail helmet mount
• User manual

Technical Specifications

• NRR (ANSI): 22 dB
• Power Supply: 2 x 1.5V AAA batteries
• Estimated Battery Life: approx. 350 hours
• IP Protection Rating: IPX-5
• Weight: 370 g (without batteries)
• Operating Temperature: -20°C to +60°C
• Safety Standards: CE, RoHS, ANSI S3.19-1974, EN352-1:2020, EN352-4:2020, EN352-6:2020, EN352-8:2020
• Mount: M16C (flip-up and rotating)
• Mount Compatibility: ARC rail (FAST / MICH / CP AirFrame, etc.)
• Connector: MIL-STD 4-PIN Plug (also known as Nexus TP-120 / 7.0 NATO)

Key Features

• M16C helmet mount with ARC system (rotating flip-up mount in Ops-Core RAC style)
• Also included is a classic headband for wearing without a helmet (easy replacement)
• Reduces harmful noise above 82 dB (gunfire, airsoft pyrotechnics, industrial machinery)
• Amplifies low-level sounds (speech, enemy movement)
• Comfortable ear cushions for perfect sealing
• Low-profile ear cups designed for shooting (do not interfere with aiming)
• 3 amplification levels
• Suitable for both right- and left-handed users
• Two independent microphones provide excellent sound localization
• High-gain and natural sound processing from the microphone
• Waterproof battery compartment
• Detachable bidirectional microphone
• Independent high-quality speakers for clear audio separation
• Adjustable and rotating hinges for comfort
• Foldable design for space-saving and internal component protection
• Automatic shutdown after 4 hours

Improvements of the MOD4 Model Over the Previous Generation MOD3

• New threads for easy ear cup removal from the headband
• 3-second button delay to prevent accidental shutdown
• Improved metal battery cover
• Enhanced Dynamic Voice Tracking module (improved speech recognition and amplification)
• Increased resistance to radio frequency interference
• Upgraded ear cup materials
• New gel silicone ear pads (prevent overheating)
• Updated circuits and dynamic microphones

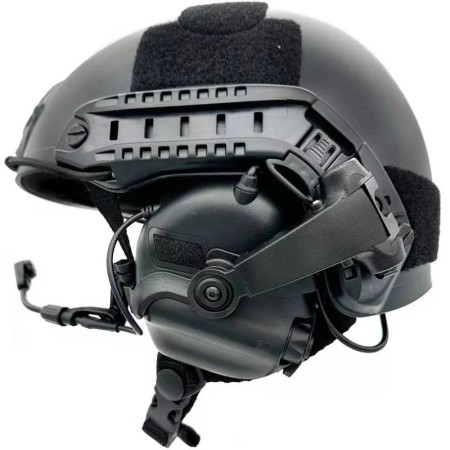

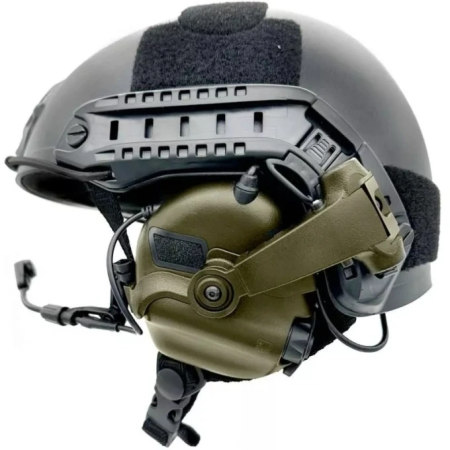

The electronic tactical headset M32X MOD4 by EARMOR is a premium hearing protection solution, allowing you to shield your ears from harmful noise while still being able to hear your surroundings and communicate with your team. This headset features built-in active hearing protection, making it invaluable in high-noise environments such as shooting ranges. The headset functions by capturing sounds through two directional microphones and reproducing them through internal speakers, allowing users to hear their surroundings while protecting their hearing. Harmful noise is limited to a safe 82 dB, while low-level sounds are amplified.

The headset utilizes a detachable bidirectional microphone for communication, ensuring it does not obstruct aiming. For connecting to communication devices such as radios or walkie-talkies, it uses a cable with a MIL-STD 4-pin plug (commonly known as Nexus TP-120 / 7.0 NATO), which must be connected to a compatible PTT switch depending on the radio’s connector type.

The M16C mounting system is based on the Ops-Core RAC design and offers fully rotatable ear cups and quick flip-up functionality, making it easy to install on ARC rails found on helmets such as FAST, MICH, and AirFrame.
