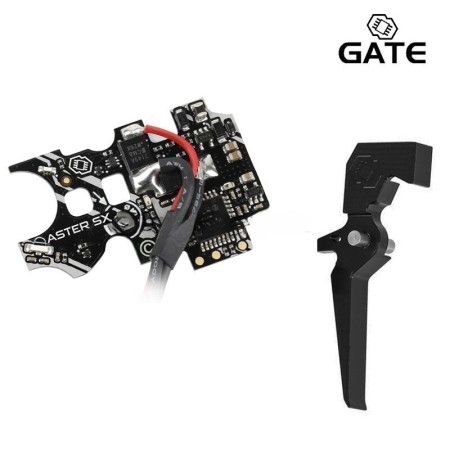

GATE ASTER V2 SX EXPERT + Quantum trigger, Rear Wired

NOTE! If you decide to personal installation gearbox parts as gears, pistons, springs, etc., you must remember that your warranty will be cancelled. If you want to keep your warranty parts must be installed by a certain service.

NOTE! Trigger included in one of available colors. No choice of color or type !

ASTER SX for V2 gearboxes – the natural successor of ASTER SE – merges years of experience with cutting edge tech. ASTERSX is fully compatible with popular brushless motors – even with batteries up to 11.1 V. The unit heats up less even while accommodating higher loads. ASTER can operate with stronger springs and more demanding configurations. ASTER SX comes with a free Quantum Trigger, so you can easily set sensitivity from ludicrous touch through hair to full movement. Improved programming via trigger gives you settings such as automatic Pre-Cocking, trigger sensitivity adjustment, Active Brake settings with top-class adaptive mode. Calibration available just via trigger and selector movement. ASTER V2 SX turns your AEG into future-proof advanced training equipment. All this, along with a thicker and sturdier PCB – 1 mm in thickness – makes ASTER V2 SX one of the most durable ETUs on the market.

What distinguishes ASTER V2 SX from the competition?

ASTER SX is future-proof, thanks to compatibility with USB-Link and Blu-Link. You can update your firmware and get new options, connect additional accessories, check telemetry. What is an ETU? It is an Electronic Trigger Unit replacing trigger contacts and the cut-off lever, which takes control of your AEG.

Why ASTER's programming via trigger is user-friendly?

you do not need to rush

you can navigate the menu very quickly and efficiently or slowly and calmly

the colors of the led lights are only a help – you can rely on the vibration of the motor

in case of any problems, you can use the very popular USB-Link or Blu-Link and use the GCS App

What is the self-learning automatic pre-cocking?

thanks to Pre-cocking, you gain trigger reaction similar to real life

it will automatically set piston position

it is easy-to-use, just set one of the 3 modes: LOW, MID or HIGH

it automatically adapts to the battery voltage and rate of fire

ASTER gives you great flexibility and is future-proof. Today you can program the most important functions with the trigger, and tomorrow you can borrow a USB-Link or Blu-Link from a friend to configure advanced functions, perform a firmware update, run diagnostics or use the GCS app on a smartwatch

Hair-trigger – up to 60 sensitivity in the first millimeter of trigger movement

Top-notch automatic pre-cocking

Foregoing reverse polarity protection in exchange for unparalleled performance

You can update its firmware via the Internet

ASTER is a part of the GATE Ecosystem

Lowest in the market current consumption. Deep sleep mode with only 0.29 mA current consumption prevents battery discharge

Built-in voltage boost converter allows for trouble-free operation with weaker batteries and increases the switching efficiency

3.75 V ready – it operates at very low voltage (even 1.2 V during the shot), which is important in high-tuned AEGs, where the voltage under load drops significantly

Sensor that supports Infinite Torque-up, DSG, SSG, 19-tooth and standard gears

The possibility of using a mechanical trigger lock

Compatibility with brushless motors

SPECIFICATIONS :

Supply Voltage Range 3.75-12.9 V

Rated Current 30 A

Current Consumption 23 mA

Low Power Mode 288 µA

Dimensions (Length x Width x Height) 43.8 mm x 28.7 mm x 7.7 mm

Finished Product Weight 23.35 g

Operating Temperature Range min. -15°C max. + 50°C

Relative Humidity ≤ 80%
